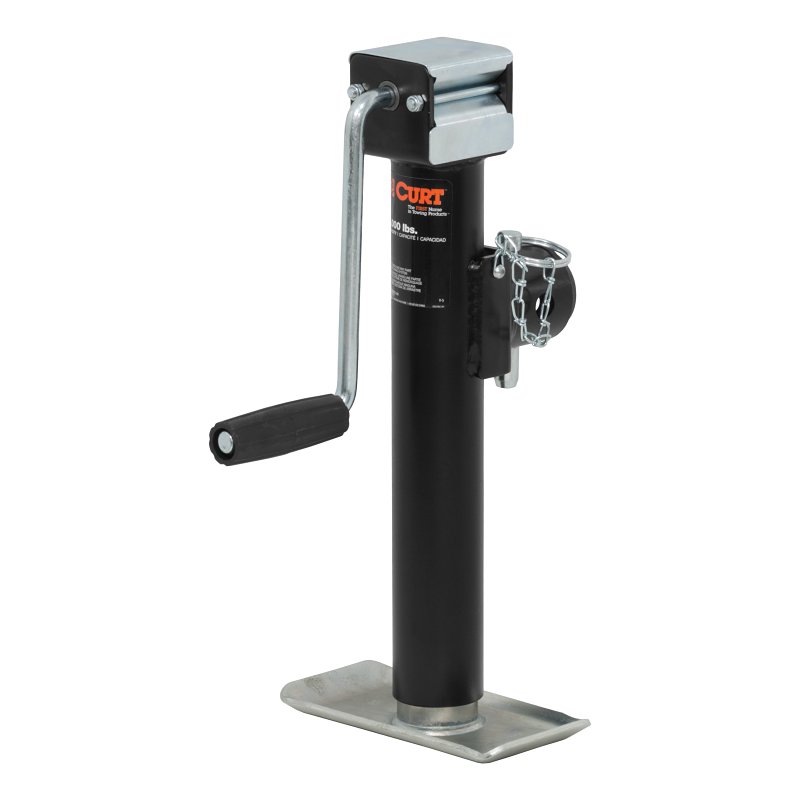

Curt 28354 Pipe-Mount Swivel Jack, 3000 lb Lifting, 10 in Max Lift H, 20-1/4 in OAH, Composite

Curt

Curt 28354 Pipe-Mount Swivel Jack, 3000 lb Lifting, 10 in Max Lift H, 20-1/4 in OAH, Composite

$79.99$79.99
Curt 28354 Pipe-Mount Swivel Jack, 3000 lb Lifting, 10 in Max Lift H, 20-1/4 in OAH, Composite
  • Color: Black
  • Diameter: 9-1/2 in
  • Finish: Carbide Powder-Coated
  • Handle Type: Side-Wind
  • Lifting Capacity: 3000 lb
  • Model #: 28354
  • UPC #: 612314006694
  • SKU: 3285442

Your shopping list will be used for pickup in-store

Product Details

In our goal of being your excellent source for all things towing, the Curt line of trailer jacks is designed with care and manufactured with pride. Curt jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field. Curt swivel jacks get their name from the pull-pin swivel feature that allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. Our swivel trailer jacks are broken into two categories: pipe mount and bracket mount. This Curt pipe mount swivel jack features a support capacity of 5000 lb, a lift capacity of 3000 lb and a travel of 10 in. With a jack foot plate welded on the bottom, this type of jack also provides added stability for your trailer on rough terrain. It comes with a side-wind handle and includes a weldable pipe with a 5/8 in hole for secure mounting. It does not matter what kind of trailer you tow - a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, Curt has the answer.

Key Features

  • Rated for 5000 lb support capacity and 3000 lb lift capacity
  • Side-wind handle easily raises or lowers trailer coupler
  • Weld-on pipe mount accepts a 5/8 in pull-pin

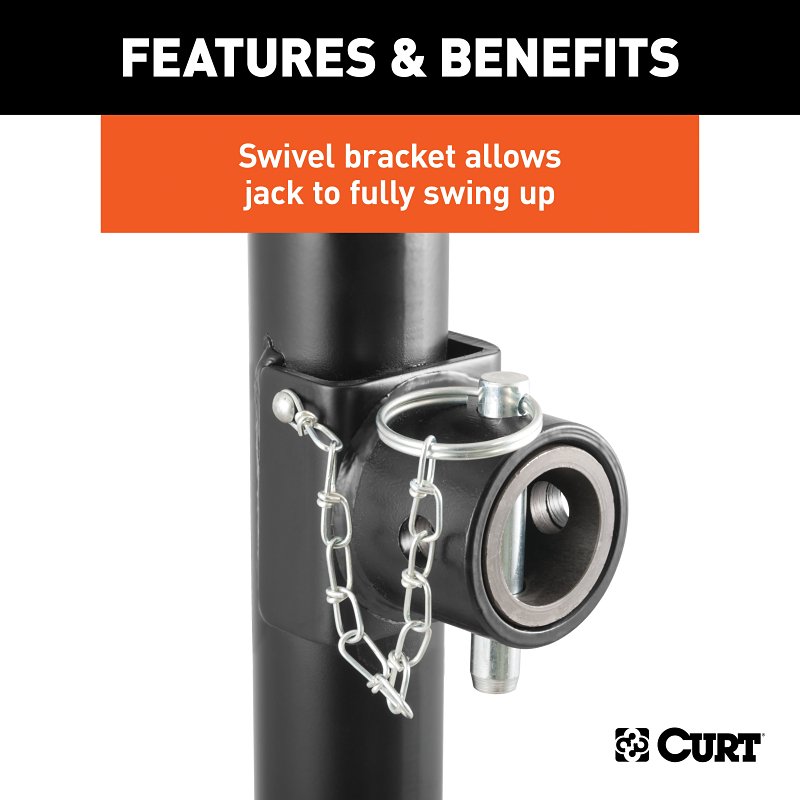

  • Swivel bracket allows jack to fully swing up and out of the way for travel
  • Pull-pin keeps jack securely locked in place
  • 10 in of vertical travel accommodate multiple ball heights

Item Specifications

ColorBlack
Diameter9-1/2 in
FinishCarbide Powder-Coated
Handle TypeSide-Wind
Lifting Capacity3000 lb
MaterialComposite
Maximum Lift Height10 in
Mounting BracketSwivel
Overall Height20-1/4 in
Retracted Length10-1/4 in
MORE DETAILS:
  • Warranty: Limited Lifetime, 1 Year Finish, 1 Year Parts
